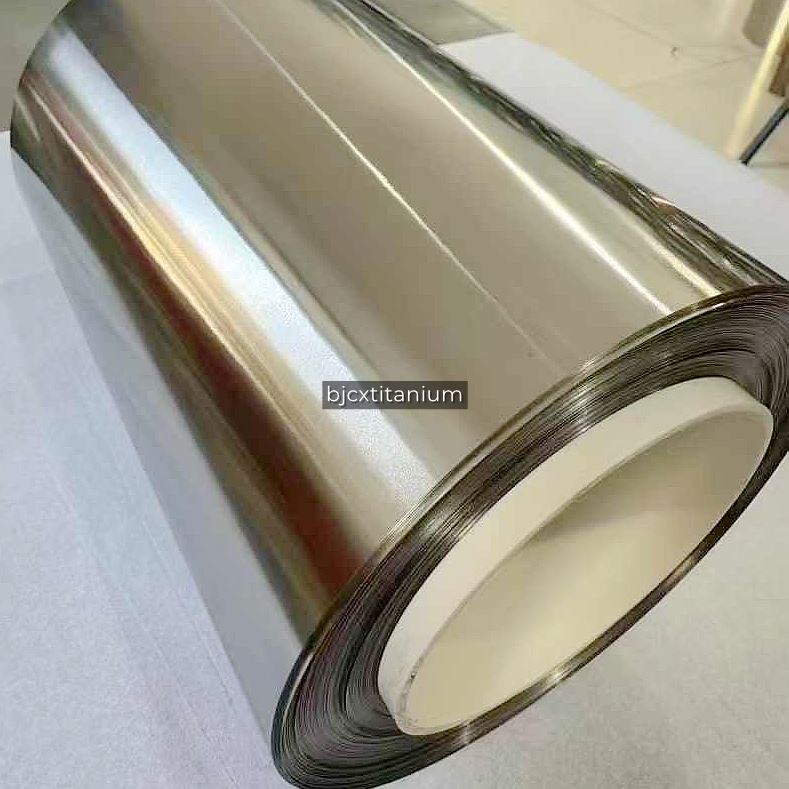

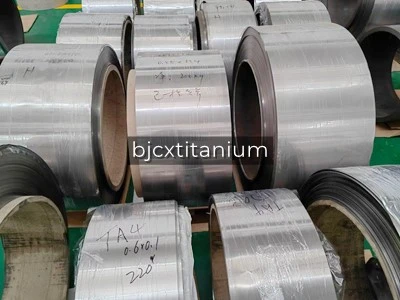

Grade 5 Titanium Strip
2. Grade 5 Titanium Strip features excellent corrosion resistance in harsh media.
3. Grade 5 Titanium Strip delivers stable performance after precision cold rolling.
4. Grade 5 Titanium Strip supports customized sizes for diverse stamping jobs.
5. Grade 5 Titanium Strip keeps low density to reduce component total weight.
Ti-6Al-4V is also known as Grade 5 Titanium and it is the most common high-strength titanium alloy in the American standard that supplies in strips. It is based on the strengthening formula of aluminum vanadium alloy, to achieve balance between light weight, high strength, good fatigue resistance and is different from the low strength short plate of pure titanium plate.
This Grade 5 Titanium Strip is suitable for various fields such as aviation, new energy, precision machinery, and chemical anti-corrosion. Whether it is engineering procurement, foreign trade distribution, or precision research and development procurement, it can meet the needs of standard mass production and customized processing. Our factory adopts precision cold rolling and vacuum annealing processes for production. The strip surface is flat, without cracks or oxidation, with high dimensional accuracy. It supports multi-dimensional non-standard customization and is the core material for high-end industrial precision forming.
Products Description
Chemical Composition
| Chemical composition for ASTM B265 Gr.5 strip, % | |
|---|---|
| Carbon | ≤0.08 |
| Oxygen | ≤0.20 |
| Nitrogen | ≤0.05 |
| Hydrogen | ≤0.015 |
| Iron | ≤0.40 |
| Aluminum | 5.5-6.75 |
| Vanadium | 3.5-4.5 |
Mechanical Properties
| Mechanical Property Requirements | |
|---|---|
| T.S. min ksi [MPa] |
130 [895] |
| Y.S. min ksi [MPa] |
120 [825] |
| El. in 2" min, % |
10 |
T.S.: tensile strength; Y.S.: yield strength; *El.: elongation.
The elongation on materials under 0.025 in. (0.635 mm) in thickness may be obtained only by negotiation.
Permissible Variations in Width
| *S.T, inch | 3/16"≤W＜1/2" | 1/2"≤W≤6" | 6"＜W≤9" |
|---|---|---|---|
| 3/16~0.161 | … | 0.016 | 0.020 |
| 0.160~0.100 | 0.010 | 0.010 | 0.016 |
| 0.099~0.069 | 0.008 | 0.008 | 0.010 |
| ≤0.068 | 0.005 | 0.005 | 0.005 |
| *S.T, inch | 9"＜W≤12" | 12"＜W≤20" | 20"＜W≤24" |
| 3/16~0.161 | 0.020 | 0.031 | 0.031 |
| 0.160~0.100 | 0.016 | 0.020 | 0.020 |
| 0.099~0.069 | 0.010 | 0.016 | 0.020 |
| ≤0.068 | 0.010 | 0.016 | 0.020 |
|
ASTM Grade |
Executive Standard |
Chemical Composition |
Size Range |
Mechanical Properties |
Application Scenarios |
|---|---|---|---|---|---|
|
Grade 5 (UNS R56400) |
ASTM B265, AMS 4911 |
Al:5.5-6.75%, V:3.5-4.5%, Ti balance, O≤0.20%, Fe≤0.40%, N≤0.05%, H≤0.015% |
Thickness:0.1–3.0mm; Width:100–1500mm; Custom length & tolerance |
Tensile≥895MPa, Yield≥828MPa, Elongation≥10% |
advantages
The core advantage of Grade 5 Titanium Strip is its high strength and formability, stable alloy ratio, and far superior fatigue and corrosion resistance compared to pure titanium strip. It can withstand alternating loads and complex corrosion conditions for a long time. Relying on precision cold rolling technology, the strip thickness is uniform, the surface is smooth, and the stamping, bending, and cutting forming effects are excellent without cracking or deformation.
The core feature of the manufacturer is full-size customization capability , supporting ultra-thin and ultra wide non-standard specification customization. The size tolerance, surface condition, and fixed length cutting can be adjusted as needed to meet various precision stamping and irregular machining needs. Small batch customization orders can also be undertaken.
Our factory focuses on the refined production of Grade 5 Titanium Strip, independently controlling the entire process of melting, cold rolling, heat treatment, and precision cutting, without any middleman markup, with complete specifications and fast delivery in stock.
Equipped with precision online thickness measurement and board surface testing equipment, each batch of products strictly adheres to ASTM American standards, and can provide a complete set of English material reports and mechanical testing data, with quality traceability throughout the entire process.
Support customized slitting, mirror polishing, and stress relief treatment to meet customers' personalized processing needs. Mature foreign trade services, exclusive moisture-proof and rust proof vacuum packaging, suitable for ocean shipping, eliminate transportation oxidation and deformation problems.
FAQ
Q1: What non-standard customization services does Grade 5 titanium strip support?
A: Customization of non-standard thickness, width, fixed length slitting, precision tolerance adjustment, and support for acid washing, mirror polishing, and stress relief annealing. The strip hardness can be optimized according to stamping conditions, and it is suitable for various precision forming processes. Small batch sample orders can be quickly scheduled for production.
Q2: Does the product comply with the export American standard? What testing data can be provided?
A: All Grade 5 Titanium Strips are produced strictly in accordance with ASTM B265 standards, with accompanying spectral composition reports, mechanical property testing reports, batch traceability documents, and support for third-party authoritative re inspection, fully meeting the acceptance requirements of overseas projects.
Q3: What are the after-sales guarantees for customized orders?
A: All spot and customized products enjoy quality assurance services, providing free stamping and bending processing technical guidance, and providing material selection suggestions based on customer working conditions. Non human quality defects can be returned or exchanged for free, and the order progress will be followed up throughout the process to ensure smooth production for customers.
