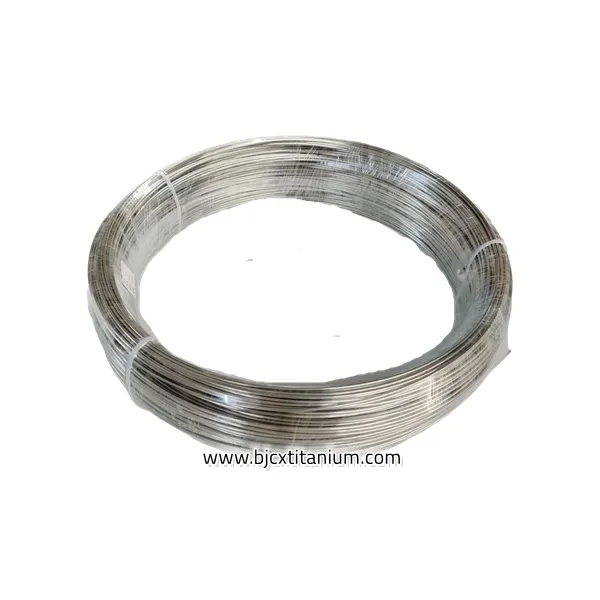

Titanium Coil Wire

Titanium Coil Wire (Titanium Coil Wire) is a core consumable material in medical, aerospace, and chemical industries, leveraging the inherent corrosion resistance, high strength, excellent biocompatibility, and lightweight properties of titanium. With 15 years of expertise in titanium processing, our titanium coil wire offers stable performance and flexible customization to meet the diverse needs of global trade clients. In the medical field, we specialize in Gr2 pure titanium grade, with a titanium content of ≥99.6%, ensuring no sensitization risk and biocompatibility compliant with ISO 10993 standards.

Classification by specification



Titanium Straight Wire (Fixed length)

Straight wire is titanium wire with no bends and fixed length, commonly utilized for applications that need for certain length and shape.

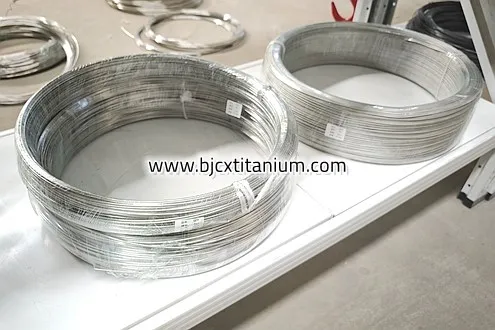

Titanium Coiled Wire (Unfixed length)

Coiled wire is titanium wire which is coiled and the length can be cut as per requirement. It is suitable for applications that require continuous use or large length changes.

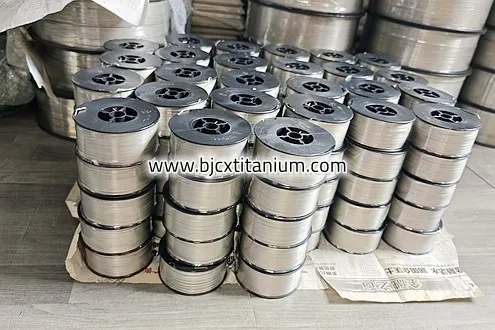

Titanium Spool Wire

Offers continuous, stable winding for high-precision automated production, while titanium coil wire provides flexible lengths and easier handling for versatile manual or small-batch applications





Classification by surface treatment

Pickled surface

The surface of titanium wire after pickling is usually silver-gray, with certain corrosion resistance and aesthetics.

Bright surface

The surface of titanium wire obtained by polishing or vacuum annealing has high smoothness and aesthetics, and is suitable for occasions with high surface requirements.



We have developed a diversified product system based on the process characteristics of different powder production scenarios: 3D printed GR1 pure titanium wire for universal titanium powder, with a diameter coverage of 0.8-6.0mm, strict tolerance control of ± 0.02mm, purity of over 99.6%, oxygen content ≤ 0.15%, and excellent flowability of the produced titanium powder, suitable for industrial grade SLM forming equipment; GR5 titanium alloy wire for medical grade titanium powder, with a diameter of 2.0-8.0mm and a tolerance of ± 0.03mm. The aluminum vanadium element ratio is precise (Al 5.5-6.75%, V 3.5-4.5%), and its biocompatibility has passed ISO 10993 certification. It can be used for the manufacture of implant powders such as artificial joints;AMS 4928 titanium wire is used for aerospace high-temperature titanium powder, with a diameter of 4.0-12.0mm and a tolerance of ± 0.05mm. It contains strengthening elements such as tin and zirconium, and has excellent high-temperature strength. It is suitable for the production of titanium powder for engine blades.

The diameter ranges from Φ0.12-0.8mm, primarily used for orthodontic archwires and surgical sutures, with a surface roughness Ra≤0.2μm to minimize tissue irritation. For aerospace applications, Gr5 (Ti-6Al-4V) is the preferred choice, featuring a tensile strength of ≥860MPa and diameters Φ1.0-6.0mm, suitable for engine fuel pipelines and instrument connectors, maintaining elastic stability in environments ranging from -50°C to 300°C. In the chemical industry, Gr12 (Ti-0.3Mo-0.8Ni) is highly recommended for its resistance to strong corrosive media such as hydrochloric acid and sulfuric acid. With diameters Φ0.8-12.0mm, it is used for reactor seals and heat exchanger coils, offering over six times the service life of stainless steel.

As a professional manufacturer, our core strengths lie in full-chain quality control and customized capabilities. At the production stage, we utilize imported vacuum arc furnaces for melting, combined with multiple passes of cold rolling and online bright annealing processes. The wire diameter tolerance is strictly controlled within ±0.01mm, with straightness ≤0.5mm/m, far exceeding the industry standard of ±0.03mm. Unlike the fixed specifications of common grades offered by peers, we can develop customized solutions for special applications, such as the corrosion-resistant Gr11 grade for marine engineering and the low-resistance Gr3 titanium alloy tailored for the electronics sector. With 20 automated production lines ensuring 24-hour delivery of standard specifications and 7-10 day lead times for special customizations, we maintain a ready stock of Φ0.1-20mm blank materials to swiftly handle urgent orders. Full-process quality inspection ensures traceability from raw material spectral analysis to finished product tensile and bending tests, with each roll accompanied by material certificates and test reports.

Firstly, our customized solutions are industry-leading in coverage dimensions. We not only support basic customizations such as diameter, length, and packaging but also allow on-demand adjustments to wire hardness (soft/hardened), surface treatments (pickling/polishing/coating), and mechanical properties. For instance, we customized Φ0.3mm Gr2 wire for a European medical device manufacturer by precisely controlling the annealing temperature to increase elongation to 25%, perfectly meeting the bending requirements of minimally invasive instruments, resulting in long-term repeat orders from the client.

Secondly, we offer a comprehensive full-cycle foreign trade dedicated service system. After custom orders are confirmed, a dedicated account manager will oversee the entire process, providing real-time updates on production progress and process imaging for traceability, eliminating cross-border communication barriers. Post-delivery, we provide a one-year free quality tracking service with regular follow-ups on usage. For applications in harsh environments such as chemical and marine settings, we can assist clients with corrosion performance testing and lifespan evaluation. For instance, we previously customized Gr12 wire coils for a Middle Eastern oil company. After six months of use, we proactively conducted on-site inspections and provided maintenance solutions, helping the client extend equipment operation cycles and achieve long-term cooperation.Our 24/7 after-sales technical support is always on standby, for customized products, we offer installation and debugging services. We will make a replacement or request rework once for dimensional deviation within 48 hours.

Third, dual guarantees for customized cost and efficiency. Leveraging large-scale procurement and proprietary molding processes, our customized product prices are 10%-15% lower than industry peers, with no minimum order quantity restrictions-small trial production orders can still enjoy bulk discounts. For urgent foreign trade needs, we activate expedited channels, such as the development and customization of Φ2.5mm Gr5 coil wire for a North American aviation parts manufacturer. By optimizing production schedules, delivery times were reduced to just 3 days, ensuring customer R&D progress. High cost-effectiveness and swift response make us a trusted choice for clients worldwide.
