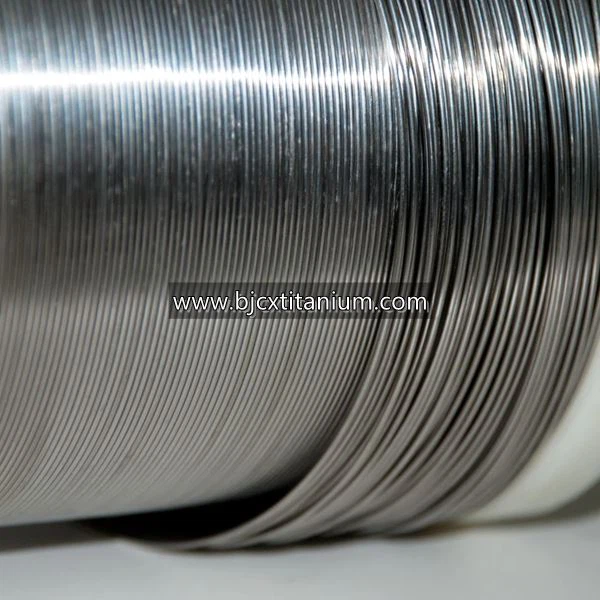

Implant Grade Titanium Wire

Ti-6Al-4V ELI High-Toughness Medical Titanium Alloy Wire ASTM F136 orthopedic implant-grade titanium wire (Ti-6Al-4V ELI) is our core product specifically designed for minimally invasive orthopedic implants and skeletal fixation scenarios. Strictly adhering to the ASTM F136 international medical standard, it belongs to the low-interstitial-element implant-grade titanium alloy material, which differs from ordinary medical-grade pure titanium wire. With ultra-high specific strength, excellent osseointegration capability, and fatigue resistance, it is the preferred material for orthopedic trauma repair, spinal fixation, and micro fixation in hand and foot surgery.

As a source manufacturer rooted in China's Titanium Valley and certified with ISO 13485, we focus on the core needs of orthopedic implant scenarios. With "orthopedic exclusive customization + medical-grade clean production + full-process compliance assurance + orthopedic specialized after-sales service" as our core strengths, we address industry pain points such as "insufficient strength, susceptibility to fracture, and poor osseointegration" in orthopedic titanium wire. We provide highly adaptable, safe, and stable orthopedic implant-grade titanium wire solutions for global orthopedic device manufacturers and hospital supporting institutions. All products come with complete MTR test reports and traceability documents, enabling direct use in orthopedic implant device production.

ASTM F136 Titanium Wire for Orthopedic Implants Core Grade Characteristics

ASTM F136 (Ti-6Al-4V ELI) serves as a benchmark grade in the field of orthopedic implants, with its core advantages precisely meeting the stringent requirements of orthopedic implant scenarios, presenting significant differences compared to standard medical-grade pure titanium (ASTM F67 Gr1/Gr2). This grade achieves reduced material brittleness and enhanced mechanical properties and biocompatibility through strict control of interstitial elements such as oxygen, nitrogen, and carbon.

ASTM F136 Orthopedic Implant Titanium Wire Specification & Application Table

Summarized in three points:

1. Superior Mechanical Performance: Tensile strength of 860 MPa or more, a yield strength of 795 MPa or more, and 10% or more elongation, and it keeps good toughness even at a thickness of 1.0-3.0mm commonly used for orthopedics. So it is able to bear the micro-motion loads which occur during bone healing, and this makes it hatitious for post-implant issues such as wire breakage or deformation, thus it is the one which can resolve the challenges, that standard titanium wires are prone to failure in weight bearing orthopedic application.

2. Highly osseointegrable: It has no cytotoxicity or sensitization as assessed according to entire ISO10993 biocompatibility standards. The oxide film formed on the surface is dense and Bone tissue bonding rate with titanium wire is rapidly increased, which can decrease the rejection reaction of after implantation and the healing process of patient.

3. Very good corrosion resistance: It provides a good corrosion resistance in human body fluid, blood and related orthopaedic post-operative sterilization solutions. It is not anticipated that the material will degrade or that toxic substances will be released during long term implantation. It has a decades long service life and fully satisfies the requirements of long term orthopaedic implants. Using precision making process specialized for orthopedic processing, we can provide wire diameter tolerances, and surface electropolishing treatment (Ra≤0.2μm) to be used in orthopedic implant component manufacture directly without being subjected to any secondary processing. Furthermore, adopting advanced vacuum smelting technology, the purity of the product is more than 99.95% and the impurity content is less than 10ppm, so the biocompatibility and mechanical stability are further enhanced.

1. Hand and Foot Micro-Fixation Application: for fixation of small bone fractures and joint repairs in hand and foot. Made of ASTM F136 Titanium wire with size 0.5mm–1.0mm, tolerance of ±0.005mm, surface is electropolished (Ra≤0.15μm). It provides very good toughness and strength, just satisfying the fixation need to tiny bones without sacrificing surrounding soft tissues. In addition, the promoted osseointegration stimulates bone regeneration and reduces postoperative complications.A multi-pass drawing processing may be used to prepare the titanium wire of this specification, which resolves the problem of elastic deformation in processing of titanium alloy and the dimensional accuracy and surface quality can be guaranteed.

2. Scenario of Orthopedic Trauma Repair: Fractures of the limbs and pelvis. The tensile strength is consistently above 860MPa and the product comes in 1.0mm – 2.0mm diameter with ±0.01mm tolerance. It can withstand micro-movement loads during the bone healing period, resist postoperative disinfection medium corrosion, and supports customized cutting lengths (0.5m–1000m/roll). It directly adapts to automated assembly of orthopedic instruments, eliminating the need for customer re-cutting. Through the improvement of annealing process, we enhance the fatigue resistance of the titanium wire and the fatigue life test result meets 120% of the industry standard, achieving the effect of prohibiting material fatigue failure after long-term use in vivo.

3. spinal fixation example , used for spinal fusion and intervertebral disc repair. Material is 2.0mm–3.0mm, with tolerance of ±0.01mm Excellent fatigue resistance and stability. It conforms to the physiological curvature of the spine, reducing post-implantation impact on spinal mobility. Its excellent biocompatibility does not induce rejection reaction to fulfill long-term implantation. This specification is undergoing stringent osseointegration test, with less than 0.1% rejection after implantation, which meets the standard of advanced orthopedic implant.

We are one of the few original manufacturers in the industry capable of stable mass production of ASTM F136 titanium wire specifically for orthopedic applications. With 12 years of dedicated R&D and production in orthopedic implant titanium wire, we possess specialized manufacturing and customization capabilities tailored to orthopedic scenarios, distinct from the "general-purpose production model" of ordinary titanium wire manufacturers. Equipped with imported precision cold-drawing machines, constant-temperature annealing furnaces, and laser diameter calibrators, we employ a multi-pass progressive drawing process.

Combined with orthopedic-specific medical molds, this ensures uniform dimensional accuracy and surface quality across every wire, eliminating impurities from mold wear. The entire production process takes place in a Class 100,000 cleanroom, featuring closed-loop control from raw material processing to wire drawing, annealing, and finished packaging-preventing contamination from dust and impurities. Each batch undergoes particle content testing and orthopedic-specific mechanical performance evaluations, fully complying with implant-grade medical standards to guarantee product safety at the production source. Additionally, we have established a three-tier quality control system, achieving a 99.9% pass rate for both mechanical performance and corrosion resistance in titanium wire products, leading the industry in quality stability.

We possess a comprehensive orthopedic medical-grade quality control and compliance system, certified under the ISO 13485 Medical Quality Management System, adhering strictly to the ASTM F136 standard in production. Our entire process complies with global orthopedic medical industry requirements. The raw materials used are medical-grade ASTM F136 titanium sponge, with each batch accompanied by furnace number certification and composition test reports, enabling full traceability of raw materials.

A full-process traceability system is established during production, meticulously documenting process parameters and test results for each stage. Finished products come with complete MTR files including biocompatibility reports, mechanical performance test reports, and dimensional accuracy test reports, directly applicable for FDA, CE, NMPA, and other major global medical certifications, eliminating the need for additional compliance costs from customers. We also participate in multiple national-level orthopedic medical device R&D projects, with our product quality recognized by leading domestic orthopedic device manufacturers.

We possess specialized capabilities in ASTM F136 orthopedic customized R&D and after-sales services, with a technical team composed of professionals in orthopedic material R&D and orthopedic device design. We can deeply adapt to customers' orthopedic clinical applications and device R&D needs, differing from the "generalized customization" of ordinary manufacturers. In addition to standard customizations for wire diameter, length, and surface treatment, we can optimize annealing processes for various orthopedic fixation scenarios, adjust the elastic modulus and toughness of titanium wire, and address material compatibility challenges in orthopedic device R&D. Meanwhile, we have established an exclusive orthopedic after-sales team to provide full-cycle one-on-one technical support, having assisted dozens of new orthopedic implant devices in clinical translation and global certification. For orthopedic clients' special requirements, we offer free small-batch prototyping, delivering samples within 7 days to expedite product development.

1. Can special tolerances and surface coatings of ASTM F136 orthopedic titanium wire be customized to suit niche orthopedic implantation scenarios?

Okay. We specialize in the exclusive customization of ASTM F136 orthopedic implant grade titanium wire, breaking through the boundaries of conventional customization. We can accurately adjust product parameters according to customers' niche orthopedic implant scenarios (such as pediatric orthopedics, minimally invasive orthopedics) and instrument design needs.

In terms of tolerance, it can be customized as needed within the range of ± 0.003mm - ± 0.01mm to meet the ultimate precision requirements of high-end minimally invasive orthopedic instruments; In terms of surface coating, in addition to conventional electropolishing and bright annealing treatment, customized bone induction coating (accelerates bone integration, shortens patient recovery cycle), antibacterial coating (reduces postoperative infection risk), and special surface roughness (Ra ≤ 0.1 μ m-0.2 μ m) can also be customized according to customer needs to meet the biocompatibility requirements of different orthopedic implantation scenarios.

Before customization, the technical team will conduct a manufacturability evaluation based on the 2D/3D drawings provided by the customer and clinical needs.

Considering the difficult processing characteristics of titanium alloy, parameter optimization suggestions will be provided to ensure that the customized product not only meets the ASTM F136 international standard, but also perfectly adapts to niche orthopedic implantation scenarios and instrument assembly needs. There is no minimum order quantity limit, and small batch customization can also achieve fast sample delivery within 7 working days. At the same time, customized testing reports (including mechanical properties, biocompatibility, bone integration testing, etc.) will be issued to help customers quickly promote orthopedic instrument research and development and testing.

2. Can the customized ASTM F136 orthopedic titanium wire provide a complete set of compliance documents for global orthopedic medical certification to help the product go global?

Okay. We are well aware of the importance of orthopedic instrument certification and going global. All customized ASTM F136 orthopedic titanium wires can provide a complete set of compliance materials for global mainstream orthopedic medical certifications such as FDA, CE, NMPA, etc., completely solving customer certification problems. Specifically, it includes product ingredient testing reports, ASTM F136 standard compliance reports, ISO10993 full set of biocompatibility testing reports (cytotoxicity, allergenicity, mutagenicity, blood compatibility, bone integration testing, etc.), mechanical performance testing reports, dimensional accuracy testing reports, production process documents, full process traceability documents, and compliance statements.

At the same time, our after-sales team has rich experience in orthopedic medical certification and can assist customers throughout the process of organizing and reviewing certification materials, answering material related questions during the certification process, such as biocompatibility requirements and mechanical performance standards for orthopedic implant materials, helping customers quickly advance the certification process, avoiding delays in product launch and overseas progress due to material compliance issues, and saving customers certification costs and time costs. Our products have also passed the material review of EU CE certification and US FDA certification, and can be directly used for access applications in the global orthopedic device market. With our compliance services, customers can significantly shorten the certification cycle and improve the efficiency of product export.

3.How to deal with dimensional deviations, surface defects, or assembly compatibility issues with customized ASTM F136 orthopedic titanium wire?

If customized products have dimensional deviations, surface defects, mechanical properties that do not meet standards, or assembly compatibility issues, and our professional testing verifies that it is due to production reasons, we will immediately activate the orthopedic exclusive after-sales emergency plan, unconditionally reproduce or replace the product free of charge, bear the round-trip logistics costs, and ensure that it does not affect the customer's research and development and production progress.

At the same time, the technical team will be arranged to conduct a thorough analysis of the cause of the problem as soon as possible. Based on the production process characteristics of orthopedic titanium wire, the production process will be optimized, production equipment will be calibrated, and similar problems will be avoided from happening again.

In response to assembly adaptation issues, the technical team will have a deep understanding of the customer's orthopedic instrument assembly process and clinical application requirements, provide customized size adjustments, surface treatment optimization, and assembly process suggestions, assist customers in quickly solving assembly problems, ensure that customized products are perfectly adapted to orthopedic instruments, and provide technical review reports to help customers avoid similar risks in subsequent processing and assembly.

In addition, we will arrange for technical personnel to follow up one-on-one and track the progress of problem resolution throughout the process until the customer is completely satisfied. At the same time, we will establish a problem ledger, continuously optimize production control, ensure stable product quality in the future, and guarantee the continuity of customer orthopedic instrument production.

4. Can the small batch and multi specification customized ASTM F136 orthopedic titanium wire meet the needs of orthopedic instrument research and emergency production in terms of sampling and delivery time?

We fully support small batch and multi specification customization with no minimum order quantity limit, which can meet various needs of customers for orthopedic instrument research and development sampling, small batch trial production, and emergency production.

The customized sampling cycle for conventional specifications (0.5mm-3.0mm, conventional tolerance ± 0.005mm - ± 0.01mm, conventional electropolished surface) is 7 working days, and the delivery time for batch customization is 10-15 working days; If it involves special tolerances (± 0.003mm), special surface coatings (bone induction, antibacterial coatings), or customized sterile packaging, the sampling cycle is 10 working days, and the batch delivery time is 15-20 working days.

For urgent orders from customers, we can prioritize production and minimize delivery time to ensure that customers receive products quickly. All customized samples come with orthopedic specific medical grade testing reports, which customers can directly use for orthopedic instrument development testing and clinical validation without additional testing, greatly improving research and development efficiency. We rely on the well-established titanium industry chain in Baoji, with strong supply chain collaboration capabilities, which can effectively cope with the risk of raw material fluctuations and ensure delivery stability. At the same time, our spot reserves cover commonly used orthopedic specifications, and regular orders can be shipped on the same day, further shortening the delivery cycle and meeting customers' urgent production needs.

5. Can after-sales provide technical guidance on the processing of ASTM F136 orthopedic titanium wire to solve problems such as wire breakage and deformation during the processing of orthopedic instruments?

Okay. Our after-sales technical team has rich experience in processing ASTM F136 medical titanium alloy wire, especially skilled in providing technical guidance during the processing of orthopedic instruments. We can provide one-on-one processing technical guidance to customers throughout the process, thoroughly solving various problems encountered by customers during the processing.

In response to the pain points of easy breakage, deformation, and surface damage of orthopedic titanium wires, combined with the characteristics of low thermal conductivity, large elastic deformation, and easy vibration during processing of titanium alloys, we will provide customized processing parameter suggestions, including temperature, force, and speed control parameters for aseptic cutting, welding, bending, and forming processes, to help customers reduce processing losses; If customers encounter complex problems during the processing, we can arrange engineers to provide remote guidance and, if necessary, on-site assistance in debugging equipment, optimizing processing technology, and solving problems such as sticking, burning, and fracture that occur during titanium alloy processing.

At the same time, we will provide processing technology optimization solutions to help customers improve processing efficiency, reduce processing losses, ensure that the processed titanium wire fully meets the requirements of orthopedic instruments, and ensure the smooth progress of customer production. In addition, we will regularly organize technical training to convey the processing techniques and quality control points of orthopedic titanium wire to customers, in order to improve their processing level.
