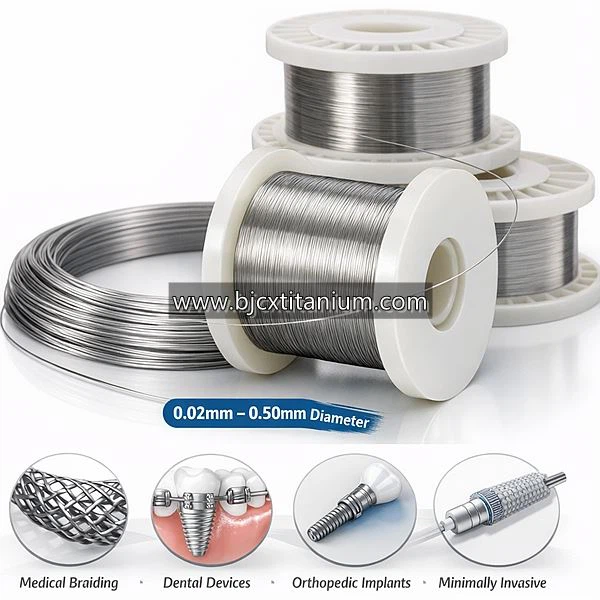

Titanium Wire For Medical Use

Medical Ultra-Thin Titanium Wire Quality Standard: ASTM, AMS, DIN or as requested Product Description: Implant grade titanium products based on the powdered metallurgy (PM) or standard production of our own materials.

Medical ultra-fine titanium wire is a high precision productfor application in high end medical solutions in implantable parts and consumable. Our titanium wire is processed in compliance with ASTM F67 (CP titanium) and ASTM F136 (Ti-6Al-4V ELI) for superior biocompatibility, corrosion resistance, and mechanical stability suitable for medical use.

With width from 0.02 mm to 0.50 mm, these ultra-fine titanium wire are designed for medical braiding, catheter layer, dental and micro orthopedic applications.ISO 13485 Certified Medical Device Manufacturer Chenxin Titanium provides a full suite of manufacturing services for wire, plate, tubing, singulat forms, and assembly for the medical device industry and is well established as a trusted partner to some of the world's largest medical device companies and med tech innovators.

·Biocompatibility at Implant Grade

Our titanium wire products conform to the ASTM F67 andASTM F136 chemical composition requirements and are tested to be in compliance with ISO 10993biocompatibility requirements, therefore these are medical grade products that can be utilized in pouches or containers with human tissue, or used in contact with human tissue.

·Ultra-Fine Precision Manufacturing
By combining the multi-stage precision drawing technology with the medical grade dies, stable ultra-fine diameters with superior dimensional stability can be obtained.
·Typical tolerance range:
±0.002 mm for ultra-fine diameters
±0.003 mm for larger medical wires
This guarantees that it will work with precision medical instruments as well as high-volume automated manufacturing .### Superior mechanical properties
·Various titanium grades to suit specific mechanical properties:
ASTM F67 Gr1 – good drawability for ultra-fine wire drawing
ASTM F67 Gr2 – balanced strength and corrosion resistance
ASTM F136 Ti-6Al-4V ELI** – high strength for orthopedic components

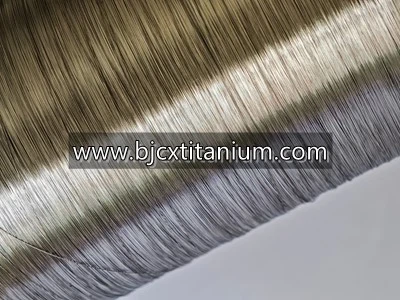

ASTM F67 Titanium Wire for Medical

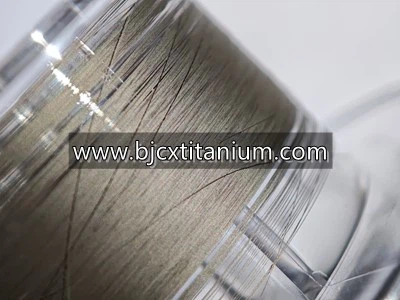

ASTM F136 Ti-6Al-4V ELI Titanium Wire

otitanium wire for medical use

Available surface conditions:

·Bright
·Polished
·Medical clean surface

Medical Braided Structures

Ultra fine dia Titanium wires are also used in medical braided structures for catheters and instruments for minimally invasive surgeries.

Dental Devices
Due to the excellent bio-compatibility and resistance to corrosion in the oral environment, titanium wire has been widely used in dental ligature wires and other components related to the orthodontics.

Micro Orthopedic Components

High strength titanium Ti-6Al-4V ELI wire can be used to manufacture small orthopedic fixation device such as screws and anchors and implant accessory.

Precision Medical Mesh

Ultra-fine titanium wires are also used in biomedical meshes and filtration structures in the application of specialized medical devices.

Our plant is running with medical-grade manufacturing system which meets ISO 13485 requirement. Production procedures consist of precision drawing, controlled atmosphere annealing, ultrasonic cleaning and contamination free packaging.

Key capabilities include:

·ultra-fine wire drawing down to 0.02 mm
·strict batch traceability
·medical-grade cleaning processes
·customized spool packaging

Each production batch is supplied with a Material Test Report (MTR) containing the details of chemistry and mechanical properties.

Custom Medical Titanium Wire Solutions

We support customized production for medical device manufacturers, including:

·custom diameters 0.02–0.50 mm
·customized mechanical properties through annealing
·special surface finishing
·custom spool sizes and packaging

Prototype samples can typically be prepared within 3–7 working days depending on specifications.

1.What standards does your medical titanium wire comply with?
Our titanium wires meet the norms/standards ASTM F67 (CP Titanium) and ASTM F136 (Ti-6Al-4V ELI) that are the standards which you generally utilize for medical materials.

2.What are the smallest diameters can you produce?
Our minimum diameter provides for commercially pure titanium wire is 0.02 mm.

3.Can you provide traceability documentation?
Yes. Every batch includes a Material Test Report (MTR) and full production traceability.
